This is an abstract base class from which all classes holding up to 1 widget inside of them derive. It provides access to methods relevent to a single object, such as add_label, add_pixmap, etc.
Public Member Functions | |
| void | add_label (const Glib::ustring& label, bool mnemonic, AlignmentEnum x_align, AlignmentEnum y_align=ALIGN_CENTER) |
| Add a Label object. | |
| void | add_label (const Glib::ustring& label, bool mnemonic=false, double x_align=0.5, double y_align=0.5) |
| Add a Label object. | |
| void | add_pixlabel (const Glib::ustring& pixfile, const Glib::ustring& label, double x_align=0.5, double y_align=0.5) |
| Add Image and Label objects. | |
| void | add_pixlabel (const Glib::RefPtr<Gdk::Pixmap>& pixmap, const Glib::RefPtr<Gdk::Bitmap>& mask, const Glib::ustring& label, double x_align=0.5, double y_align=0.5) |
| Add Image and Label objects. | |
| void | add_pixmap (const Glib::RefPtr<Gdk::Pixmap>& pixmap, const Glib::RefPtr<Gdk::Bitmap>& mask) |
| Add an Image object. | |
| const Widget* | get_child () const |
| Widget* | get_child () |
| const GtkBin* | gobj () const |
| Provides access to the underlying C GtkObject. | |
| GtkBin* | gobj () |
| Provides access to the underlying C GtkObject. | |
| void | remove () |
| Remove the contained object Since this can only hold one object it is not necessary to specify which object to remove like other containers. | |
| virtual | ~Bin () |
Protected Member Functions | |
| Bin () | |
Related Functions | |
| (Note that these are not member functions.) | |
| Gtk::Bin* | wrap (GtkBin* object, bool take_copy=false) |
| A Glib::wrap() method for this object. | |
| virtual Gtk::Bin::~Bin | ( | ) | [virtual] |
| Gtk::Bin::Bin | ( | ) | [protected] |
| void Gtk::Bin::add_label | ( | const Glib::ustring & | label, | |
| bool | mnemonic, | |||
| AlignmentEnum | x_align, | |||
| AlignmentEnum | y_align = ALIGN_CENTER | |||
| ) |
Add a Label object.
This does not correspond to any GTK+ function and is provided purely for convenience.
| label | The label text. | |
| mnemonic | If true, characters preceded by an underscore (_) will be underlined and used as a keyboard accelerator (shortcut). | |
| x_align | The horizontal alignment of the text. For possible values, see Gtk::AlignmentEnum. | |
| y_align | The vertical alignment of the text. For possible values, see Gtk::AlignmentEnum. |
| void Gtk::Bin::add_label | ( | const Glib::ustring & | label, | |
| bool | mnemonic = false, |
|||
| double | x_align = 0.5, |
|||
| double | y_align = 0.5 | |||
| ) |
Add a Label object.
This does not correspond to any GTK+ function and is provided purely for convenience.
| label | The text for the label. | |
| mnemonic | If true, characters preceded by an underscore (_) will be underlined and used as a keyboard accelerator (shortcut). | |
| x_align | The horizontal alignment of the text. This ranges from 0.0 (left aligned) to 1.0 (right aligned). | |
| y_align | The vertical alignment of the text. This ranges from 0.0 (top aligned) to 1.0 (bottom aligned). |
| void Gtk::Bin::add_pixlabel | ( | const Glib::ustring & | pixfile, | |
| const Glib::ustring & | label, | |||
| double | x_align = 0.5, |
|||
| double | y_align = 0.5 | |||
| ) |
This does not correspond to any GTK+ function and is provided purely for convenience. This will create, manage, add, and show a new Image and Label (within an HBox) to this Bin.
| pixfile | The path to a file to be displayed. | |
| label | The text for the label. | |
| x_align | The horizontal alignment of the text in the label. | |
| y_align | The vertical alignment of the text in the label. |
| void Gtk::Bin::add_pixlabel | ( | const Glib::RefPtr<Gdk::Pixmap>& | pixmap, | |
| const Glib::RefPtr<Gdk::Bitmap>& | mask, | |||
| const Glib::ustring & | label, | |||
| double | x_align = 0.5, |
|||
| double | y_align = 0.5 | |||
| ) |
This does not correspond to any GTK+ function and is provided purely for convenience. This will create, manage, add, and show a new Image and Label (within an HBox) to this Bin.
| pixmap | A Glib::RefPtr to a Gdk::Pixmap. | |
| mask | A Glib::RefPtr to a Gdk::Bitmap. | |
| label | The text for the label. | |
| x_align | The horizontal alignment of the text in the label. | |
| y_align | The vertical alignment of the text in the label. |
| void Gtk::Bin::add_pixmap | ( | const Glib::RefPtr<Gdk::Pixmap>& | pixmap, | |
| const Glib::RefPtr<Gdk::Bitmap>& | mask | |||
| ) |
Add an Image object.
This does not correspond to any GTK+ function and is provided purely for convenience. This will create, manage, add, and show a new Image to this Bin.
| pixmap | A Glib::RefPtr to a Gdk::Pixmap. | |
| mask | A Glib::RefPtr to a Gdk::Bitmap. |
| const Widget* Gtk::Bin::get_child | ( | ) | const |
| Widget* Gtk::Bin::get_child | ( | ) |
| const GtkBin* Gtk::Bin::gobj | ( | ) | const [inline] |
Provides access to the underlying C GtkObject.
Reimplemented from Gtk::Container.

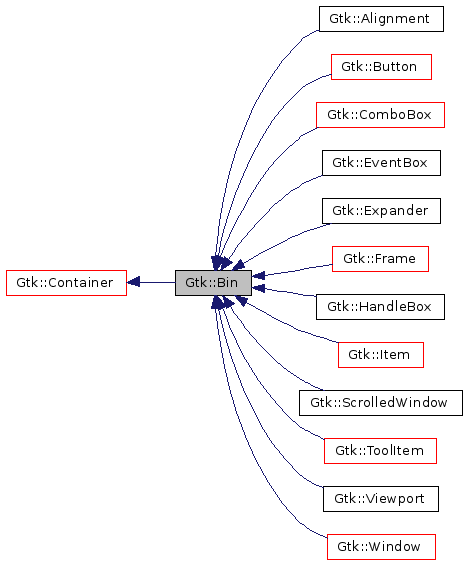

Reimplemented in Gtk::AboutDialog, Gtk::Alignment, Gtk::AspectFrame, Gtk::Assistant, Gtk::Button, Gtk::CheckButton, Gtk::CheckMenuItem, Gtk::ColorButton, Gtk::ColorSelectionDialog, Gtk::ComboDropDownItem, Gtk::ComboBox, Gtk::ComboBoxEntry, Gtk::Dialog, Gtk::EventBox, Gtk::Expander, Gtk::FileChooserDialog, Gtk::FileSelection, Gtk::FontButton, Gtk::FontSelectionDialog, Gtk::Frame, Gtk::HandleBox, Gtk::ImageMenuItem, Gtk::InputDialog, Gtk::Item, Gtk::LinkButton, Gtk::MenuItem, Gtk::MenuToolButton, Gtk::MessageDialog, Gtk::OptionMenu, Gtk::PageSetupUnixDialog, Gtk::Plug, Gtk::PrintUnixDialog, Gtk::RadioButton, Gtk::RadioMenuItem, Gtk::RadioToolButton, Gtk::RecentChooserDialog, Gtk::ScrolledWindow, Gtk::SeparatorMenuItem, Gtk::SeparatorToolItem, Gtk::TearoffMenuItem, Gtk::ToggleButton, Gtk::ToggleToolButton, Gtk::ToolButton, Gtk::ToolItem, Gtk::Viewport, and Gtk::Window.
| GtkBin* Gtk::Bin::gobj | ( | ) | [inline] |
Provides access to the underlying C GtkObject.
Reimplemented from Gtk::Container.
Reimplemented in Gtk::AboutDialog, Gtk::Alignment, Gtk::AspectFrame, Gtk::Assistant, Gtk::Button, Gtk::CheckButton, Gtk::CheckMenuItem, Gtk::ColorButton, Gtk::ColorSelectionDialog, Gtk::ComboDropDownItem, Gtk::ComboBox, Gtk::ComboBoxEntry, Gtk::Dialog, Gtk::EventBox, Gtk::Expander, Gtk::FileChooserDialog, Gtk::FileSelection, Gtk::FontButton, Gtk::FontSelectionDialog, Gtk::Frame, Gtk::HandleBox, Gtk::ImageMenuItem, Gtk::InputDialog, Gtk::Item, Gtk::LinkButton, Gtk::MenuItem, Gtk::MenuToolButton, Gtk::MessageDialog, Gtk::OptionMenu, Gtk::PageSetupUnixDialog, Gtk::Plug, Gtk::PrintUnixDialog, Gtk::RadioButton, Gtk::RadioMenuItem, Gtk::RadioToolButton, Gtk::RecentChooserDialog, Gtk::ScrolledWindow, Gtk::SeparatorMenuItem, Gtk::SeparatorToolItem, Gtk::TearoffMenuItem, Gtk::ToggleButton, Gtk::ToggleToolButton, Gtk::ToolButton, Gtk::ToolItem, Gtk::Viewport, and Gtk::Window.
| void Gtk::Bin::remove | ( | ) |
Remove the contained object Since this can only hold one object it is not necessary to specify which object to remove like other containers.
When calling remove() on a Gtk::ScrolledWindow this might not remove the expected child directly, because Gtk::ScrolledWindow::add() sometimes creates a Gtk::ViewPort child and places the widget in that.
| Gtk::Bin* wrap | ( | GtkBin * | object, | |
| bool | take_copy = false | |||
| ) | [related] |
A Glib::wrap() method for this object.
| object | The C instance. | |
| take_copy | False if the result should take ownership of the C instance. True if it should take a new copy or ref. |
