Gtk::AspectFrame Class Reference
[Widgets, Container Widgets]

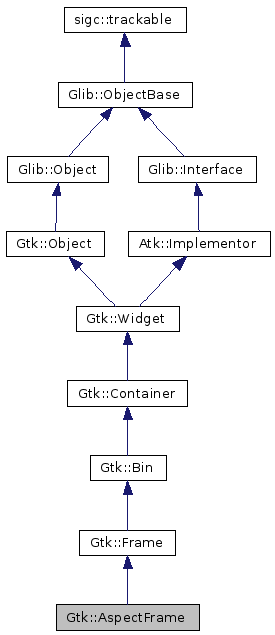

Inheritance diagram for Gtk::AspectFrame:

[legend]List of all members.

---

Detailed Description

A frame that constrains its child to a particular aspect ratio.

The Gtk::AspectFrame is useful when you want pack a widget so that it can resize but always retains the same aspect ratio. For instance, one might be drawing a small preview of a larger image. Because it derives from Gtk::Frame, it can draw a label and a frame around the child. The frame will be "shrink-wrapped" to the size of the child.

Public Member Functions
	AspectFrame (const Glib::ustring& label, float xalign, float yalign, float ratio=1.0, bool obey_child=false)
	Constructor to create a new AspectFrame object.
	AspectFrame (const Glib::ustring& label=Glib::ustring(), AlignmentEnum xalign=Gtk::ALIGN_CENTER, AlignmentEnum yalign=Gtk::ALIGN_CENTER, float ratio=1.0, bool obey_child=false)
	Constructor to create a new AspectFrame object.
const GtkAspectFrame*	gobj () const
	Provides access to the underlying C GtkObject.
GtkAspectFrame*	gobj ()
	Provides access to the underlying C GtkObject.
Glib::PropertyProxy_ReadOnly< bool >	property_obey_child () const
	Force aspect ratio to match that of the frame's child.
Glib::PropertyProxy<bool>	property_obey_child ()
	Force aspect ratio to match that of the frame's child.
Glib::PropertyProxy_ReadOnly< float >	property_ratio () const
	Aspect ratio if obey_child is FALSE.
Glib::PropertyProxy<float>	property_ratio ()
	Aspect ratio if obey_child is FALSE.
Glib::PropertyProxy_ReadOnly< float >	property_xalign () const
	X alignment of the child.
Glib::PropertyProxy<float>	property_xalign ()
	X alignment of the child.
Glib::PropertyProxy_ReadOnly< float >	property_yalign () const
	Y alignment of the child.
Glib::PropertyProxy<float>	property_yalign ()
	Y alignment of the child.
void	set (AlignmentEnum xalign, AlignmentEnum yalign, float ratio, bool obey_child=true)
	Set the properties of this AspectFrame.
void	set (float xalign, float yalign, float ratio, bool obey_child=true)
	Set the properties of this AspectFrame.
virtual	~AspectFrame ()
Related Functions
(Note that these are not member functions.)
Gtk::AspectFrame*	wrap (GtkAspectFrame* object, bool take_copy=false)
	A Glib::wrap() method for this object.

---

Constructor & Destructor Documentation

virtual Gtk::AspectFrame::~AspectFrame

(

)

[virtual]

Gtk::AspectFrame::AspectFrame	(	const Glib::ustring &	label = Glib::ustring(),
		AlignmentEnum	xalign = Gtk::ALIGN_CENTER,
		AlignmentEnum	yalign = Gtk::ALIGN_CENTER,
		float	ratio = 1.0,
		bool	obey_child = false
	)			[explicit]

Constructor to create a new AspectFrame object.

Parameters:

	label	Label text.
	xalign	Horizontal alignment of the child within the allocation of this AspectFrame. For possible values, see Gtk::AlignmentEnum.
	yalign	Vertical alignment of the child within the allocation of this AspectFrame. For possible values, see Gtk::AlignmentEnum.
	ratio	The desired aspect ratio.
	obey_child	If true, ratio is ignored and the aspect ratio is taken from the requisition of the child.

Gtk::AspectFrame::AspectFrame	(	const Glib::ustring &	label,
		float	xalign,
		float	yalign,
		float	ratio = 1.0,
		bool	obey_child = false
	)			[explicit]

Constructor to create a new AspectFrame object.

Parameters:

	label	Label text.
	xalign	Horizontal alignment of the child within the allocation of this AspectFrame. This ranges from 0.0 (left aligned) to 1.0 (right aligned).
	yalign	Vertical alignment of the child within the allocation of this AspectFrame. This ranges from 0.0 (top aligned) to 1.0 (bottom aligned).
	ratio	The desired aspect ratio.
	obey_child	If true, ratio is ignored and the aspect ratio is taken from the requisition of the child.

---

Member Function Documentation

const GtkAspectFrame* Gtk::AspectFrame::gobj

(

)

const [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Frame.

GtkAspectFrame* Gtk::AspectFrame::gobj

(

)

[inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Frame.

Glib::PropertyProxy_ReadOnly<bool> Gtk::AspectFrame::property_obey_child

(

)

const

Force aspect ratio to match that of the frame's child.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<bool> Gtk::AspectFrame::property_obey_child

(

)

Force aspect ratio to match that of the frame's child.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<float> Gtk::AspectFrame::property_ratio

(

)

const

Aspect ratio if obey_child is FALSE.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<float> Gtk::AspectFrame::property_ratio

(

)

Aspect ratio if obey_child is FALSE.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<float> Gtk::AspectFrame::property_xalign

(

)

const

X alignment of the child.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<float> Gtk::AspectFrame::property_xalign

(

)

X alignment of the child.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<float> Gtk::AspectFrame::property_yalign

(

)

const

Y alignment of the child.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<float> Gtk::AspectFrame::property_yalign

(

)

Y alignment of the child.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:

A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

void Gtk::AspectFrame::set	(	AlignmentEnum	xalign,
		AlignmentEnum	yalign,
		float	ratio,
		bool	obey_child = true
	)

Set the properties of this AspectFrame.

Parameters:

	xalign	Horizontal alignment of the child within the allocation of this AspectFrame. For possible values, see Gtk::AlignmentEnum.
	yalign	Vertical alignment of the child within the allocation of this AspectFrame. For possible values, see Gtk::AlignmentEnum.
	ratio	The desired aspect ratio.
	obey_child	If true, ratio is ignored and the aspect ratio is taken from the requisition of the child.

void Gtk::AspectFrame::set	(	float	xalign,
		float	yalign,
		float	ratio,
		bool	obey_child = true
	)

Set the properties of this AspectFrame.

Parameters:

	xalign	Horizontal alignment of the child within the allocation of this AspectFrame. This ranges from 0.0 (left aligned) to 1.0 (right aligned).
	yalign	Vertical alignment of the child within the allocation of this AspectFrame. This ranges from 0.0 (top aligned) to 1.0 (bottom aligned).
	ratio	The desired aspect ratio.
	obey_child	If true, ratio is ignored and the aspect ratio is taken from the requisition of the child.

---

Friends And Related Function Documentation

Gtk::AspectFrame* wrap	(	GtkAspectFrame *	object,
		bool	take_copy = false
	)			[related]

A Glib::wrap() method for this object.

Parameters:

	object	The C instance.
	take_copy	False if the result should take ownership of the C instance. True if it should take a new copy or ref.

Returns:

A C++ instance that wraps this C instance.

---

The documentation for this class was generated from the following file:

• aspectframe.h

---
