Gtk::TextView Class Reference
[WidgetsContainer WidgetsTextView Classes]

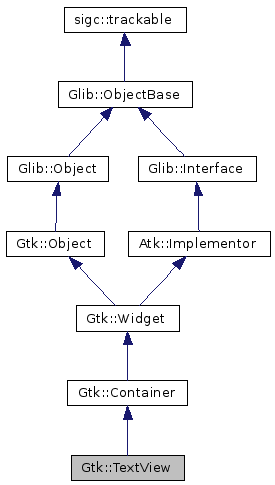

Inheritance diagram for Gtk::TextView:

Inheritance graph
[legend]
List of all members.

Detailed Description

Multi-line text editing widget.

It displays a Gtk::TextBuffer.


Public Member Functions

void add_child_at_anchor (Widget& child, const Glib::RefPtr<TextBuffer::ChildAnchor>& anchor)
 Adds a child widget in the text buffer, at the given anchor .
void add_child_in_window (Widget& child, TextWindowType which_window, int xpos, int ypos)
 Adds a child at fixed coordinates in one of the text widget's windows.
bool backward_display_line (TextBuffer::iterator& iter)
 Moves the given iter backward by one display (wrapped) line.
bool backward_display_line_start (TextBuffer::iterator& iter)
 Moves the given iter backward to the next display line start.
void buffer_to_window_coords (TextWindowType win, int buffer_x, int buffer_y, int& window_x, int& window_y) const
 Converts coordinate ( buffer_x , buffer_y ) to coordinates for the window win , and stores the result in ( window_x , window_y ).
bool forward_display_line (TextBuffer::iterator& iter)
 Moves the given iter forward by one display (wrapped) line.
bool forward_display_line_end (TextBuffer::iterator& iter)
 Moves the given iter forward to the next display line end.
bool get_accepts_tab () const
 Returns whether pressing the Tab key inserts a tab characters.
int get_border_window_size (TextWindowType type) const
 Gets the width of the specified border window.
Glib::RefPtr<const TextBufferget_buffer () const
 Returns the Gtk::TextBuffer being displayed by this text view.
Glib::RefPtr<TextBufferget_buffer ()
 Returns the Gtk::TextBuffer being displayed by this text view.
bool get_cursor_visible () const
 Find out whether the cursor is being displayed.
TextAttributes get_default_attributes () const
 Obtains a copy of the default text attributes.
bool get_editable () const
 Returns the default editability of the Gtk::TextView.
int get_indent () const
 Gets the default indentation of paragraphs in text_view .
void get_iter_at_location (TextBuffer::iterator& iter, int x, int y) const
 Retrieves the iterator at buffer coordinates x and y .
void get_iter_at_position (TextBuffer::iterator& iter, int& trailing, int x, int y) const
 Retrieves the iterator pointing to the character at buffer coordinates x and y .
void get_iter_location (const TextBuffer::iterator& iter, Gdk::Rectangle& location) const
 Gets a rectangle which roughly contains the character at iter .
Justification get_justification () const
 Gets the default justification of paragraphs in text_view .
int get_left_margin () const
 Gets the default left margin size of paragraphs in the text_view .
void get_line_at_y (TextBuffer::iterator& target_iter, int y, int& line_top) const
 Gets the Gtk::TextIter at the start of the line containing the coordinate y .
void get_line_yrange (const TextBuffer::iterator& iter, int& y, int& height) const
 Gets the y coordinate of the top of the line containing iter , and the height of the line.
bool get_overwrite () const
 Returns whether the Gtk::TextView is in overwrite mode or not.
int get_pixels_above_lines () const
 Gets the default number of pixels to put above paragraphs.
int get_pixels_below_lines () const
 Gets the value set by set_pixels_below_lines().
int get_pixels_inside_wrap () const
 Gets the value set by set_pixels_inside_wrap().
int get_right_margin () const
 Gets the default right margin for text in text_view .
Pango::TabArray get_tabs () const
 Gets the default tabs for text_view .
void get_visible_rect (Gdk::Rectangle& visible_rect) const
 Fills visible_rect with the currently-visible region of the buffer, in buffer coordinates.
Glib::RefPtr<const Gdk::Windowget_window (TextWindowType win) const
 Retrieves the Gdk::Window corresponding to an area of the text view; possible windows include the overall widget window, child windows on the left, right, top, bottom, and the window that displays the text buffer.
Glib::RefPtr<Gdk::Windowget_window (TextWindowType win)
 Retrieves the Gdk::Window corresponding to an area of the text view; possible windows include the overall widget window, child windows on the left, right, top, bottom, and the window that displays the text buffer.
TextWindowType get_window_type (const Glib::RefPtr<Gdk::Window>& window)
 Usually used to find out which window an event corresponds to.
WrapMode get_wrap_mode () const
 Gets the line wrapping for the view.
const GtkTextView* gobj () const
 Provides access to the underlying C GtkObject.
GtkTextView* gobj ()
 Provides access to the underlying C GtkObject.
void move_child (Widget& child, int xpos, int ypos)
 Updates the position of a child, as for add_child_in_window().
bool move_mark_onscreen (const Glib::RefPtr<TextBuffer::Mark>& mark)
 Moves a mark within the buffer so that it's located within the currently-visible text area.
bool move_visually (TextBuffer::iterator& iter, int count)
 Move the iterator a given number of characters visually, treating it as the strong cursor position.
bool place_cursor_onscreen ()
 Moves the cursor to the currently visible region of the buffer, it it isn't there already.
Glib::PropertyProxy_ReadOnly<
bool >
property_accepts_tab () const
 Whether Tab will result in a tab character being entered.
Glib::PropertyProxy<bool> property_accepts_tab ()
 Whether Tab will result in a tab character being entered.
Glib::PropertyProxy_ReadOnly<
Glib::RefPtr<TextBuffer >>
property_buffer () const
 The buffer which is displayed.
Glib::PropertyProxy< Glib::RefPtr<
TextBuffer > >
property_buffer ()
 The buffer which is displayed.
Glib::PropertyProxy_ReadOnly<
bool >
property_cursor_visible () const
 If the insertion cursor is shown.
Glib::PropertyProxy<bool> property_cursor_visible ()
 If the insertion cursor is shown.
Glib::PropertyProxy_ReadOnly<
bool >
property_editable () const
 Whether the text can be modified by the user.
Glib::PropertyProxy<bool> property_editable ()
 Whether the text can be modified by the user.
Glib::PropertyProxy_ReadOnly<
int >
property_indent () const
 Amount to indent the paragraph.
Glib::PropertyProxy<int> property_indent ()
 Amount to indent the paragraph.
Glib::PropertyProxy_ReadOnly<
Justification
property_justification () const
 Left.
Glib::PropertyProxy<Justificationproperty_justification ()
 Left.
Glib::PropertyProxy_ReadOnly<
int >
property_left_margin () const
 Width of the left margin in pixels.
Glib::PropertyProxy<int> property_left_margin ()
 Width of the left margin in pixels.
Glib::PropertyProxy_ReadOnly<
bool >
property_overwrite () const
 Whether entered text overwrites existing contents.
Glib::PropertyProxy<bool> property_overwrite ()
 Whether entered text overwrites existing contents.
Glib::PropertyProxy_ReadOnly<
int >
property_pixels_above_lines () const
 Pixels of blank space above paragraphs.
Glib::PropertyProxy<int> property_pixels_above_lines ()
 Pixels of blank space above paragraphs.
Glib::PropertyProxy_ReadOnly<
int >
property_pixels_below_lines () const
 Pixels of blank space below paragraphs.
Glib::PropertyProxy<int> property_pixels_below_lines ()
 Pixels of blank space below paragraphs.
Glib::PropertyProxy_ReadOnly<
int >
property_pixels_inside_wrap () const
 Pixels of blank space between wrapped lines in a paragraph.
Glib::PropertyProxy<int> property_pixels_inside_wrap ()
 Pixels of blank space between wrapped lines in a paragraph.
Glib::PropertyProxy_ReadOnly<
int >
property_right_margin () const
 Width of the right margin in pixels.
Glib::PropertyProxy<int> property_right_margin ()
 Width of the right margin in pixels.
Glib::PropertyProxy_ReadOnly<
Pango::TabArray
property_tabs () const
 Custom tabs for this text.
Glib::PropertyProxy<Pango::TabArrayproperty_tabs ()
 Custom tabs for this text.
Glib::PropertyProxy_ReadOnly<
WrapMode
property_wrap_mode () const
 Whether to wrap lines never.
Glib::PropertyProxy<WrapModeproperty_wrap_mode ()
 Whether to wrap lines never.
void scroll_mark_onscreen (const Glib::RefPtr<TextBuffer::Mark>& mark)
void scroll_to (const Glib::RefPtr<TextBuffer::Mark>& mark, double within_margin, double xalign, double yalign)
 Scrolls the TextView so that iter is on the screen, in the position indicated by xalign and yalign, possibly not scrolling at all.
void scroll_to (const Glib::RefPtr<TextBuffer::Mark>& mark, double within_margin=0)
 Scrolls text_view so that mark is on the screen, by scrolling the minimal distance to get the mark onscreen, possibly not scrolling at all.
bool scroll_to (TextBuffer::iterator& iter, double within_margin, double xalign, double yalign)
 Scrolls the TextView so that iter is on the screen, in the position indicated by xalign and yalign, possibly not scrolling at all.
bool scroll_to (TextBuffer::iterator& iter, double within_margin=0)
 Scrolls the TextView so that iter is on the screen, by scrolling the minimal distance to get the mark onscreen, possibly not scrolling at all.
bool scroll_to_iter (TextBuffer::iterator& iter, double within_margin)
void scroll_to_mark (const Glib::RefPtr<TextBuffer::Mark>& mark, double within_margin)
void set_accepts_tab (bool accepts_tab=true)
 Sets the behavior of the text widget when the Tab key is pressed.
void set_border_window_size (TextWindowType type, int size)
 Sets the width of Gtk::TEXT_WINDOW_LEFT or Gtk::TEXT_WINDOW_RIGHT, or the height of Gtk::TEXT_WINDOW_TOP or Gtk::TEXT_WINDOW_BOTTOM.
void set_buffer (const Glib::RefPtr<TextBuffer>& buffer)
 Sets buffer as the buffer being displayed by text_view .
void set_cursor_visible (bool setting=true)
 Toggles whether the insertion point is displayed.
void set_editable (bool setting=true)
 Sets the default editability of the Gtk::TextView.
void set_indent (int indent)
 Sets the default indentation for paragraphs in text_view .
void set_justification (Justification justification)
 Sets the default justification of text in text_view .
void set_left_margin (int left_margin)
 Sets the default left margin for text in text_view .
void set_overwrite (bool overwrite=true)
 Changes the Gtk::TextView overwrite mode.
void set_pixels_above_lines (int pixels_above_lines)
 Sets the default number of blank pixels above paragraphs in text_view .
void set_pixels_below_lines (int pixels_below_lines)
 Sets the default number of pixels of blank space to put below paragraphs in text_view .
void set_pixels_inside_wrap (int pixels_inside_wrap)
 Sets the default number of pixels of blank space to leave between display/wrapped lines within a paragraph.
void set_right_margin (int right_margin)
 Sets the default right margin for text in the text view.
void set_tabs (Pango::TabArray& tabs)
 Sets the default tab stops for paragraphs in text_view .
void set_wrap_mode (WrapMode wrap_mode)
 Sets the line wrapping for the view.
Glib::SignalProxy1< void,
const Glib::ustring& >
signal_insert_at_cursor ()

Prototype:
void on_my_insert_at_cursor(const Glib::ustring& str)

Glib::SignalProxy1< void,
Menu* >
signal_populate_popup ()

Prototype:
void on_my_populate_popup(Menu* menu)

Glib::SignalProxy0<void> signal_set_anchor ()

Prototype:
void on_my_set_anchor()

Glib::SignalProxy2< void,
Adjustment*, Adjustment* >
signal_set_scroll_adjustments ()

Prototype:
void on_my_set_scroll_adjustments(Adjustment* hadjustment, Adjustment* vadjustment)

bool starts_display_line (const TextBuffer::iterator& iter)
 Determines whether iter is at the start of a display line.
 TextView (const Glib::RefPtr<TextBuffer>& buffer)
 TextView ()
void window_to_buffer_coords (TextWindowType win, int window_x, int window_y, int& buffer_x, int& buffer_y) const
 Converts coordinates on the window identified by win to buffer coordinates, storing the result in ( buffer_x , buffer_y ).
virtual ~TextView ()

Protected Member Functions

virtual void on_insert_at_cursor (const Glib::ustring& str)
virtual void on_populate_popup (Menu* menu)
virtual void on_set_anchor ()
virtual void on_set_scroll_adjustments (Adjustment* hadjustment, Adjustment* vadjustment)

Related Functions

(Note that these are not member functions.)

Gtk::TextViewwrap (GtkTextView* object, bool take_copy=false)
 A Glib::wrap() method for this object.


Constructor & Destructor Documentation

virtual Gtk::TextView::~TextView (  )  [virtual]

Gtk::TextView::TextView (  )

Gtk::TextView::TextView ( const Glib::RefPtr<TextBuffer>&  buffer  )  [explicit]


Member Function Documentation

void Gtk::TextView::add_child_at_anchor ( Widget child,
const Glib::RefPtr<TextBuffer::ChildAnchor>&  anchor
)

Adds a child widget in the text buffer, at the given anchor .

Parameters:
child A Gtk::Widget.
anchor A Gtk::TextChildAnchor in the Gtk::TextBuffer for text_view .

void Gtk::TextView::add_child_in_window ( Widget child,
TextWindowType  which_window,
int  xpos,
int  ypos
)

Adds a child at fixed coordinates in one of the text widget's windows.

The window must have nonzero size (see set_border_window_size()). Note that the child coordinates are given relative to the Gdk::Window in question, and that these coordinates have no sane relationship to scrolling. When placing a child in Gtk::TEXT_WINDOW_WIDGET, scrolling is irrelevant, the child floats above all scrollable areas. But when placing a child in one of the scrollable windows (border windows or text window), you'll need to compute the child's correct position in buffer coordinates any time scrolling occurs or buffer changes occur, and then call move_child() to update the child's position. Unfortunately there's no good way to detect that scrolling has occurred, using the current API; a possible hack would be to update all child positions when the scroll adjustments change or the text buffer changes. See bug 64518 on bugzilla.gnome.org for status of fixing this issue.

Parameters:
child A Gtk::Widget.
which_window Which window the child should appear in.
xpos X position of child in window coordinates.
ypos Y position of child in window coordinates.

bool Gtk::TextView::backward_display_line ( TextBuffer::iterator iter  )

Moves the given iter backward by one display (wrapped) line.

A display line is different from a paragraph. Paragraphs are separated by newlines or other paragraph separator characters. Display lines are created by line-wrapping a paragraph. If wrapping is turned off, display lines and paragraphs will be the same. Display lines are divided differently for each view, since they depend on the view's width; paragraphs are the same in all views, since they depend on the contents of the Gtk::TextBuffer.

Parameters:
iter A Gtk::TextIter.
Returns:
true if iter was moved and is not on the end iterator.

bool Gtk::TextView::backward_display_line_start ( TextBuffer::iterator iter  )

Moves the given iter backward to the next display line start.

A display line is different from a paragraph. Paragraphs are separated by newlines or other paragraph separator characters. Display lines are created by line-wrapping a paragraph. If wrapping is turned off, display lines and paragraphs will be the same. Display lines are divided differently for each view, since they depend on the view's width; paragraphs are the same in all views, since they depend on the contents of the Gtk::TextBuffer.

Parameters:
iter A Gtk::TextIter.
Returns:
true if iter was moved and is not on the end iterator.

void Gtk::TextView::buffer_to_window_coords ( TextWindowType  win,
int  buffer_x,
int  buffer_y,
int &  window_x,
int &  window_y
) const

Converts coordinate ( buffer_x , buffer_y ) to coordinates for the window win , and stores the result in ( window_x , window_y ).

Note that you can't convert coordinates for a nonexisting window (see set_border_window_size()).

Parameters:
win A Gtk::TextWindowType except Gtk::TEXT_WINDOW_PRIVATE.
buffer_x Buffer x coordinate.
buffer_y Buffer y coordinate.
window_x Window x coordinate return location.
window_y Window y coordinate return location.

bool Gtk::TextView::forward_display_line ( TextBuffer::iterator iter  )

Moves the given iter forward by one display (wrapped) line.

A display line is different from a paragraph. Paragraphs are separated by newlines or other paragraph separator characters. Display lines are created by line-wrapping a paragraph. If wrapping is turned off, display lines and paragraphs will be the same. Display lines are divided differently for each view, since they depend on the view's width; paragraphs are the same in all views, since they depend on the contents of the Gtk::TextBuffer.

Parameters:
iter A Gtk::TextIter.
Returns:
true if iter was moved and is not on the end iterator.

bool Gtk::TextView::forward_display_line_end ( TextBuffer::iterator iter  )

Moves the given iter forward to the next display line end.

A display line is different from a paragraph. Paragraphs are separated by newlines or other paragraph separator characters. Display lines are created by line-wrapping a paragraph. If wrapping is turned off, display lines and paragraphs will be the same. Display lines are divided differently for each view, since they depend on the view's width; paragraphs are the same in all views, since they depend on the contents of the Gtk::TextBuffer.

Parameters:
iter A Gtk::TextIter.
Returns:
true if iter was moved and is not on the end iterator.

bool Gtk::TextView::get_accepts_tab (  )  const

Returns whether pressing the Tab key inserts a tab characters.

set_accepts_tab().

Returns:
true if pressing the Tab key inserts a tab character, false if pressing the Tab key moves the keyboard focus.
Since gtkmm 2.4:

int Gtk::TextView::get_border_window_size ( TextWindowType  type  )  const

Gets the width of the specified border window.

See set_border_window_size().

Parameters:
type Window to return size from.
Returns:
Width of window.

Glib::RefPtr<const TextBuffer> Gtk::TextView::get_buffer (  )  const

Returns the Gtk::TextBuffer being displayed by this text view.

The reference count on the buffer is not incremented; the caller of this function won't own a new reference.

Returns:
A Gtk::TextBuffer.

Glib::RefPtr<TextBuffer> Gtk::TextView::get_buffer (  )

Returns the Gtk::TextBuffer being displayed by this text view.

The reference count on the buffer is not incremented; the caller of this function won't own a new reference.

Returns:
A Gtk::TextBuffer.

bool Gtk::TextView::get_cursor_visible (  )  const

Find out whether the cursor is being displayed.

Returns:
Whether the insertion mark is visible.

TextAttributes Gtk::TextView::get_default_attributes (  )  const

Obtains a copy of the default text attributes.

These are the attributes used for text unless a tag overrides them. You'd typically pass the default attributes in to Gtk::TextIter::get_attributes() in order to get the attributes in effect at a given text position.

Returns:
A new Gtk::TextAttributes.

bool Gtk::TextView::get_editable (  )  const

Returns the default editability of the Gtk::TextView.

Tags in the buffer may override this setting for some ranges of text.

Returns:
Whether text is editable by default.

int Gtk::TextView::get_indent (  )  const

Gets the default indentation of paragraphs in text_view .

Tags in the view's buffer may override the default. The indentation may be negative.

Returns:
Number of pixels of indentation.

void Gtk::TextView::get_iter_at_location ( TextBuffer::iterator iter,
int  x,
int  y
) const

Retrieves the iterator at buffer coordinates x and y .

Buffer coordinates are coordinates for the entire buffer, not just the currently-displayed portion. If you have coordinates from an event, you have to convert those to buffer coordinates with window_to_buffer_coords().

Parameters:
iter A Gtk::TextIter.
x X position, in buffer coordinates.
y Y position, in buffer coordinates.

void Gtk::TextView::get_iter_at_position ( TextBuffer::iterator iter,
int &  trailing,
int  x,
int  y
) const

Retrieves the iterator pointing to the character at buffer coordinates x and y .

Buffer coordinates are coordinates for the entire buffer, not just the currently-displayed portion. If you have coordinates from an event, you have to convert those to buffer coordinates with window_to_buffer_coords().

Note that this is different from get_iter_at_location(), which returns cursor locations, i.e. positions between characters.

Since gtkmm 2.6:
Parameters:
iter A Gtk::TextIter.
trailing Location to store an integer indicating where in the grapheme the user clicked. It will either be zero, or the number of characters in the grapheme. 0 represents the trailing edge of the grapheme.
x X position, in buffer coordinates.
y Y position, in buffer coordinates.

void Gtk::TextView::get_iter_location ( const TextBuffer::iterator iter,
Gdk::Rectangle location
) const

Gets a rectangle which roughly contains the character at iter .

The rectangle position is in buffer coordinates; use buffer_to_window_coords() to convert these coordinates to coordinates for one of the windows in the text view.

Parameters:
iter A Gtk::TextIter.
location Bounds of the character at iter .

Justification Gtk::TextView::get_justification (  )  const

Gets the default justification of paragraphs in text_view .

Tags in the buffer may override the default.

Returns:
Default justification.

int Gtk::TextView::get_left_margin (  )  const

Gets the default left margin size of paragraphs in the text_view .

Tags in the buffer may override the default.

Returns:
Left margin in pixels.

void Gtk::TextView::get_line_at_y ( TextBuffer::iterator target_iter,
int  y,
int &  line_top
) const

Gets the Gtk::TextIter at the start of the line containing the coordinate y .

y is in buffer coordinates, convert from window coordinates with window_to_buffer_coords(). If non-0, line_top will be filled with the coordinate of the top edge of the line.

Parameters:
target_iter A Gtk::TextIter.
y A y coordinate.
line_top Return location for top coordinate of the line.

void Gtk::TextView::get_line_yrange ( const TextBuffer::iterator iter,
int &  y,
int &  height
) const

Gets the y coordinate of the top of the line containing iter , and the height of the line.

The coordinate is a buffer coordinate; convert to window coordinates with buffer_to_window_coords().

Parameters:
iter A Gtk::TextIter.
y Return location for a y coordinate.
height Return location for a height.

bool Gtk::TextView::get_overwrite (  )  const

Returns whether the Gtk::TextView is in overwrite mode or not.

Returns:
Whether text_view is in overwrite mode or not.
Since gtkmm 2.4:

int Gtk::TextView::get_pixels_above_lines (  )  const

Gets the default number of pixels to put above paragraphs.

Returns:
Default number of pixels above paragraphs.

int Gtk::TextView::get_pixels_below_lines (  )  const

Gets the value set by set_pixels_below_lines().

Returns:
Default number of blank pixels below paragraphs.

int Gtk::TextView::get_pixels_inside_wrap (  )  const

Gets the value set by set_pixels_inside_wrap().

Returns:
Default number of pixels of blank space between wrapped lines.

int Gtk::TextView::get_right_margin (  )  const

Gets the default right margin for text in text_view .

Tags in the buffer may override the default.

Returns:
Right margin in pixels.

Pango::TabArray Gtk::TextView::get_tabs (  )  const

Gets the default tabs for text_view .

Tags in the buffer may override the defaults. The returned array will be empty if "standard" (8-space) tabs are used.

Returns:
Copy of default tab array, or an empty array if "standard" tabs are used.

void Gtk::TextView::get_visible_rect ( Gdk::Rectangle visible_rect  )  const

Fills visible_rect with the currently-visible region of the buffer, in buffer coordinates.

Convert to window coordinates with buffer_to_window_coords().

Parameters:
visible_rect Rectangle to fill.

Glib::RefPtr<const Gdk::Window> Gtk::TextView::get_window ( TextWindowType  win  )  const

Retrieves the Gdk::Window corresponding to an area of the text view; possible windows include the overall widget window, child windows on the left, right, top, bottom, and the window that displays the text buffer.

Windows are 0 and nonexistent if their width or height is 0, and are nonexistent before the widget has been realized.

Parameters:
win Window to get.
Returns:
A Gdk::Window, or 0.

Glib::RefPtr<Gdk::Window> Gtk::TextView::get_window ( TextWindowType  win  )

Retrieves the Gdk::Window corresponding to an area of the text view; possible windows include the overall widget window, child windows on the left, right, top, bottom, and the window that displays the text buffer.

Windows are 0 and nonexistent if their width or height is 0, and are nonexistent before the widget has been realized.

Parameters:
win Window to get.
Returns:
A Gdk::Window, or 0.

TextWindowType Gtk::TextView::get_window_type ( const Glib::RefPtr<Gdk::Window>&  window  )

Usually used to find out which window an event corresponds to.

If you connect to an event signal on text_view , this function should be called on event->window to see which window it was.

Parameters:
window A window type.
Returns:
The window type.

WrapMode Gtk::TextView::get_wrap_mode (  )  const

Gets the line wrapping for the view.

Returns:
The line wrap setting.

const GtkTextView* Gtk::TextView::gobj (  )  const [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Container.

GtkTextView* Gtk::TextView::gobj (  )  [inline]

Provides access to the underlying C GtkObject.

Reimplemented from Gtk::Container.

void Gtk::TextView::move_child ( Widget child,
int  xpos,
int  ypos
)

Updates the position of a child, as for add_child_in_window().

Parameters:
child Child widget already added to the text view.
xpos New X position in window coordinates.
ypos New Y position in window coordinates.

bool Gtk::TextView::move_mark_onscreen ( const Glib::RefPtr<TextBuffer::Mark>&  mark  )

Moves a mark within the buffer so that it's located within the currently-visible text area.

Parameters:
mark A Gtk::TextMark.
Returns:
true if the mark moved (wasn't already onscreen).

bool Gtk::TextView::move_visually ( TextBuffer::iterator iter,
int  count
)

Move the iterator a given number of characters visually, treating it as the strong cursor position.

If count is positive, then the new strong cursor position will be count positions to the right of the old cursor position. If count is negative then the new strong cursor position will be count positions to the left of the old cursor position.

In the presence of bidirection text, the correspondence between logical and visual order will depend on the direction of the current run, and there may be jumps when the cursor is moved off of the end of a run.

Parameters:
iter A Gtk::TextIter.
count Number of characters to move (negative moves left, positive moves right).
Returns:
true if iter moved and is not on the end iterator.

virtual void Gtk::TextView::on_insert_at_cursor ( const Glib::ustring str  )  [protected, virtual]

virtual void Gtk::TextView::on_populate_popup ( Menu menu  )  [protected, virtual]

virtual void Gtk::TextView::on_set_anchor (  )  [protected, virtual]

virtual void Gtk::TextView::on_set_scroll_adjustments ( Adjustment hadjustment,
Adjustment vadjustment
) [protected, virtual]

bool Gtk::TextView::place_cursor_onscreen (  )

Moves the cursor to the currently visible region of the buffer, it it isn't there already.

Returns:
true if the cursor had to be moved.

Glib::PropertyProxy_ReadOnly<bool> Gtk::TextView::property_accepts_tab (  )  const

Whether Tab will result in a tab character being entered.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<bool> Gtk::TextView::property_accepts_tab (  )

Whether Tab will result in a tab character being entered.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Glib::RefPtr<TextBuffer>> Gtk::TextView::property_buffer (  )  const

The buffer which is displayed.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Glib::RefPtr<TextBuffer>> Gtk::TextView::property_buffer (  )

The buffer which is displayed.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<bool> Gtk::TextView::property_cursor_visible (  )  const

If the insertion cursor is shown.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<bool> Gtk::TextView::property_cursor_visible (  )

If the insertion cursor is shown.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<bool> Gtk::TextView::property_editable (  )  const

Whether the text can be modified by the user.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<bool> Gtk::TextView::property_editable (  )

Whether the text can be modified by the user.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::TextView::property_indent (  )  const

Amount to indent the paragraph.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::TextView::property_indent (  )

Amount to indent the paragraph.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Justification> Gtk::TextView::property_justification (  )  const

Left.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Justification> Gtk::TextView::property_justification (  )

Left.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::TextView::property_left_margin (  )  const

Width of the left margin in pixels.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::TextView::property_left_margin (  )

Width of the left margin in pixels.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<bool> Gtk::TextView::property_overwrite (  )  const

Whether entered text overwrites existing contents.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<bool> Gtk::TextView::property_overwrite (  )

Whether entered text overwrites existing contents.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::TextView::property_pixels_above_lines (  )  const

Pixels of blank space above paragraphs.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::TextView::property_pixels_above_lines (  )

Pixels of blank space above paragraphs.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::TextView::property_pixels_below_lines (  )  const

Pixels of blank space below paragraphs.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::TextView::property_pixels_below_lines (  )

Pixels of blank space below paragraphs.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::TextView::property_pixels_inside_wrap (  )  const

Pixels of blank space between wrapped lines in a paragraph.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::TextView::property_pixels_inside_wrap (  )

Pixels of blank space between wrapped lines in a paragraph.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<int> Gtk::TextView::property_right_margin (  )  const

Width of the right margin in pixels.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<int> Gtk::TextView::property_right_margin (  )

Width of the right margin in pixels.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<Pango::TabArray> Gtk::TextView::property_tabs (  )  const

Custom tabs for this text.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<Pango::TabArray> Gtk::TextView::property_tabs (  )

Custom tabs for this text.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy_ReadOnly<WrapMode> Gtk::TextView::property_wrap_mode (  )  const

Whether to wrap lines never.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

Glib::PropertyProxy<WrapMode> Gtk::TextView::property_wrap_mode (  )

Whether to wrap lines never.

You rarely need to use properties because there are get_ and set_ methods for almost all of them.

Returns:
A PropertyProxy that allows you to get or set the property of the value, or receive notification when the value of the property changes.

void Gtk::TextView::scroll_mark_onscreen ( const Glib::RefPtr<TextBuffer::Mark>&  mark  )

Deprecated:
Use scroll_to()

void Gtk::TextView::scroll_to ( const Glib::RefPtr<TextBuffer::Mark>&  mark,
double  within_margin,
double  xalign,
double  yalign
)

Scrolls the TextView so that iter is on the screen, in the position indicated by xalign and yalign, possibly not scrolling at all.

The effective screen for purposes of this function is reduced by a margin of size within_margin.

Parameters:
mark An mark pointing to the position that should be made visible by scrolling.
within_margin margin as a [0.0,0.5] fraction of screen size.
xalign horizontal alignment of mark within visible area. An alignment of 0.0 indicates left, 1.0 indicates right, 0.5 means center.
yalign vertical alignment of mark within visible area. An alignment of 0.0 indicates top, 1.0 indicates bottom, 0.5 means center.

void Gtk::TextView::scroll_to ( const Glib::RefPtr<TextBuffer::Mark>&  mark,
double  within_margin = 0
)

Scrolls text_view so that mark is on the screen, by scrolling the minimal distance to get the mark onscreen, possibly not scrolling at all.

The effective screen for purposes of this function is reduced by a margin of size within_margin.

Parameters:
mark An mark pointing to the position that should be made visible by scrolling.
within_margin margin as a [0.0,0.5] fraction of screen size.

bool Gtk::TextView::scroll_to ( TextBuffer::iterator iter,
double  within_margin,
double  xalign,
double  yalign
)

Scrolls the TextView so that iter is on the screen, in the position indicated by xalign and yalign, possibly not scrolling at all.

The effective screen for purposes of this function is reduced by a margin of size within_margin.

Note:
This function uses the currently-computed height of the lines in the text buffer. Note that line heights are computed in an idle handler; so this function may not have the desired effect if it's called before the height computations. To avoid oddness, consider using gtk_text_view_scroll_to_mark() which saves a point to be scrolled to after line validation.
Parameters:
iter An iterator pointing to the position that should be made visible by scrolling.
within_margin margin as a [0.0,0.5] fraction of screen size.
xalign horizontal alignment of mark within visible area. An alignment of 0.0 indicates left, 1.0 indicates right, 0.5 means center.
yalign vertical alignment of mark within visible area. An alignment of 0.0 indicates top, 1.0 indicates bottom, 0.5 means center.
Returns:
true if scrolling occurred.

bool Gtk::TextView::scroll_to ( TextBuffer::iterator iter,
double  within_margin = 0
)

Scrolls the TextView so that iter is on the screen, by scrolling the minimal distance to get the mark onscreen, possibly not scrolling at all.

The effective screen for purposes of this function is reduced by a margin of size within_margin.

Note:
This function uses the currently-computed height of the lines in the text buffer. Note that line heights are computed in an idle handler; so this function may not have the desired effect if it's called before the height computations. To avoid oddness, consider using gtk_text_view_scroll_to_mark() which saves a point to be scrolled to after line validation.
Parameters:
iter An iterator pointing to the position that should be made visible by scrolling.
within_margin margin as a [0.0,0.5] fraction of screen size.
Returns:
true if scrolling occurred.

bool Gtk::TextView::scroll_to_iter ( TextBuffer::iterator iter,
double  within_margin
)

Deprecated:
Use scroll_to().

void Gtk::TextView::scroll_to_mark ( const Glib::RefPtr<TextBuffer::Mark>&  mark,
double  within_margin
)

Deprecated:
Use scroll_to().

void Gtk::TextView::set_accepts_tab ( bool  accepts_tab = true  )

Sets the behavior of the text widget when the Tab key is pressed.

If accepts_tab is true a tab character is inserted. If accepts_tab is false the keyboard focus is moved to the next widget in the focus chain.

Since gtkmm 2.4:
Parameters:
accepts_tab true if pressing the Tab key should insert a tab character, false, if pressing the Tab key should move the keyboard focus.

void Gtk::TextView::set_border_window_size ( TextWindowType  type,
int  size
)

Sets the width of Gtk::TEXT_WINDOW_LEFT or Gtk::TEXT_WINDOW_RIGHT, or the height of Gtk::TEXT_WINDOW_TOP or Gtk::TEXT_WINDOW_BOTTOM.

Automatically destroys the corresponding window if the size is set to 0, and creates the window if the size is set to non-zero. This function can only be used for the "border windows," it doesn't work with Gtk::TEXT_WINDOW_WIDGET, Gtk::TEXT_WINDOW_TEXT, or Gtk::TEXT_WINDOW_PRIVATE.

Parameters:
type Window to affect.
size Width or height of the window.

void Gtk::TextView::set_buffer ( const Glib::RefPtr<TextBuffer>&  buffer  )

Sets buffer as the buffer being displayed by text_view .

The previous buffer displayed by the text view is unreferenced, and a reference is added to buffer . If you owned a reference to buffer before passing it to this function, you must remove that reference yourself; Gtk::TextView will not "adopt" it.

Parameters:
buffer A Gtk::TextBuffer.

void Gtk::TextView::set_cursor_visible ( bool  setting = true  )

Toggles whether the insertion point is displayed.

A buffer with no editable text probably shouldn't have a visible cursor, so you may want to turn the cursor off.

Parameters:
setting Whether to show the insertion cursor.

void Gtk::TextView::set_editable ( bool  setting = true  )

Sets the default editability of the Gtk::TextView.

You can override this default setting with tags in the buffer, using the "editable" attribute of tags.

Parameters:
setting Whether it's editable.

void Gtk::TextView::set_indent ( int  indent  )

Sets the default indentation for paragraphs in text_view .

Tags in the buffer may override the default.

Parameters:
indent Indentation in pixels.

void Gtk::TextView::set_justification ( Justification  justification  )

Sets the default justification of text in text_view .

Tags in the view's buffer may override the default.

Parameters:
justification Justification.

void Gtk::TextView::set_left_margin ( int  left_margin  )

Sets the default left margin for text in text_view .

Tags in the buffer may override the default.

Parameters:
left_margin Left margin in pixels.

void Gtk::TextView::set_overwrite ( bool  overwrite = true  )

Changes the Gtk::TextView overwrite mode.

Since gtkmm 2.4:
Parameters:
overwrite true to turn on overwrite mode, false to turn it off.

void Gtk::TextView::set_pixels_above_lines ( int  pixels_above_lines  )

Sets the default number of blank pixels above paragraphs in text_view .

Tags in the buffer for text_view may override the defaults.

Parameters:
pixels_above_lines Pixels above paragraphs.

void Gtk::TextView::set_pixels_below_lines ( int  pixels_below_lines  )

Sets the default number of pixels of blank space to put below paragraphs in text_view .

May be overridden by tags applied to text_view 's buffer.

Parameters:
pixels_below_lines Pixels below paragraphs.

void Gtk::TextView::set_pixels_inside_wrap ( int  pixels_inside_wrap  )

Sets the default number of pixels of blank space to leave between display/wrapped lines within a paragraph.

May be overridden by tags in text_view 's buffer.

Parameters:
pixels_inside_wrap Default number of pixels between wrapped lines.

void Gtk::TextView::set_right_margin ( int  right_margin  )

Sets the default right margin for text in the text view.

Tags in the buffer may override the default.

Parameters:
right_margin Right margin in pixels.

void Gtk::TextView::set_tabs ( Pango::TabArray tabs  )

Sets the default tab stops for paragraphs in text_view .

Tags in the buffer may override the default.

Parameters:
tabs Tabs as a Pango::TabArray.

void Gtk::TextView::set_wrap_mode ( WrapMode  wrap_mode  )

Sets the line wrapping for the view.

Parameters:
wrap_mode A Gtk::WrapMode.

Glib::SignalProxy1< void,const Glib::ustring& > Gtk::TextView::signal_insert_at_cursor (  )

Prototype:
void on_my_insert_at_cursor(const Glib::ustring& str)

Glib::SignalProxy1<void,Menu*> Gtk::TextView::signal_populate_popup (  )

Prototype:
void on_my_populate_popup(Menu* menu)

Glib::SignalProxy0< void > Gtk::TextView::signal_set_anchor (  )

Prototype:
void on_my_set_anchor()

Glib::SignalProxy2<void,Adjustment*,Adjustment*> Gtk::TextView::signal_set_scroll_adjustments (  )

Prototype:
void on_my_set_scroll_adjustments(Adjustment* hadjustment, Adjustment* vadjustment)

bool Gtk::TextView::starts_display_line ( const TextBuffer::iterator iter  )

Determines whether iter is at the start of a display line.

See forward_display_line() for an explanation of display lines vs. paragraphs.

Parameters:
iter A Gtk::TextIter.
Returns:
true if iter begins a wrapped line.

void Gtk::TextView::window_to_buffer_coords ( TextWindowType  win,
int  window_x,
int  window_y,
int &  buffer_x,
int &  buffer_y
) const

Converts coordinates on the window identified by win to buffer coordinates, storing the result in ( buffer_x , buffer_y ).

Note that you can't convert coordinates for a nonexisting window (see set_border_window_size()).

Parameters:
win A Gtk::TextWindowType except Gtk::TEXT_WINDOW_PRIVATE.
window_x Window x coordinate.
window_y Window y coordinate.
buffer_x Buffer x coordinate return location.
buffer_y Buffer y coordinate return location.


Friends And Related Function Documentation

Gtk::TextView* wrap ( GtkTextView *  object,
bool  take_copy = false
) [related]

A Glib::wrap() method for this object.

Parameters:
object The C instance.
take_copy False if the result should take ownership of the C instance. True if it should take a new copy or ref.
Returns:
A C++ instance that wraps this C instance.


The documentation for this class was generated from the following file:
Generated for gtkmm 2.4 by Doxygen 1.5.1 © 1997-2001
