Gtk::ListViewText Class Reference
[WidgetsContainer WidgetsTreeView Classes]

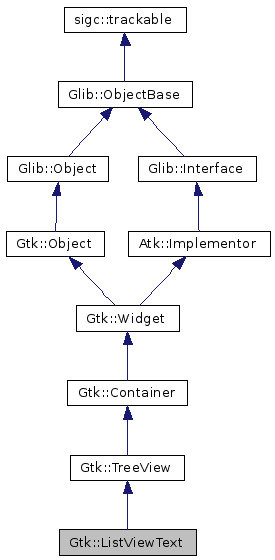

Inheritance diagram for Gtk::ListViewText:

Inheritance graph
[legend]
List of all members.

Detailed Description

A simple listbox which presents some lines of information in columns and lets the user select some of them.

This is a convenience class, based on Gtk::TreeView, which allows only text values and does not allow child items. In most cases you will actually need the functionality offered by a real Gtk::TreeView with your own type-safe Gtk::TreeModel::ColumnRecord.

Since gtkmm 2.10:


Public Types

typedef std::vector<int> SelectionList

Public Member Functions

guint append_text (const Glib::ustring& column_one_value=Glib::ustring())
 Add a new row at the end of the list.
void clear_items ()
 Discard all row:.
Glib::ustring get_column_title (guint column) const
 Gets the title of column column.
guint get_num_columns () const

Returns:
the number of columns in the listbox

SelectionList get_selected ()
 Returns a vector of the indexes of the selected rows.
Glib::ustring get_text (guint row, guint column=0) const
 Obtain the value of an existing cell from the list.
void insert_text (guint row, const Glib::ustring& column_one_value=Glib::ustring())
 Insert a new row at an arbitrary position in the list.
 ListViewText (guint columns_count, bool editable=false, Gtk::SelectionMode mode=Gtk::SELECTION_SINGLE)
void prepend_text (const Glib::ustring& column_one_value=Glib::ustring())
 Insert a new row at the beginning of the list.
void set_column_title (guint column, const Glib::ustring& title)
 Adds a title to column column.
void set_text (guint row, const Glib::ustring& value)
 Change an existing value of a column 0 of a row of the list.
void set_text (guint row, guint column, const Glib::ustring& value)
 Change an existing value of cell of the list.
guint size () const

Returns:
the number of rows in the listbox

virtual ~ListViewText ()

Protected Attributes

Glib::RefPtr<Gtk::ListStorem_model
TextModelColumns m_model_columns

Classes

class  TextModelColumns


Member Typedef Documentation

typedef std::vector<int> Gtk::ListViewText::SelectionList


Constructor & Destructor Documentation

Gtk::ListViewText::ListViewText ( guint  columns_count,
bool  editable = false,
Gtk::SelectionMode  mode = Gtk::SELECTION_SINGLE
)

virtual Gtk::ListViewText::~ListViewText (  )  [virtual]


Member Function Documentation

guint Gtk::ListViewText::append_text ( const Glib::ustring column_one_value = Glib::ustring()  )

Add a new row at the end of the list.

Parameters:
column_one_value the new text for the new row, column 0
Returns:
the number of the row added

void Gtk::ListViewText::clear_items (  )

Discard all row:.

Glib::ustring Gtk::ListViewText::get_column_title ( guint  column  )  const

Gets the title of column column.

Parameters:
column the column number.
Returns:
the title of column column.

guint Gtk::ListViewText::get_num_columns (  )  const

Returns:
the number of columns in the listbox

SelectionList Gtk::ListViewText::get_selected (  )

Returns a vector of the indexes of the selected rows.

Returns:
a SelectionList with the selection results

Glib::ustring Gtk::ListViewText::get_text ( guint  row,
guint  column = 0
) const

Obtain the value of an existing cell from the list.

Parameters:
row the number of the row in the listbox.
column the number of the column in the row.
Returns:
the value of that cell, if it exists.

void Gtk::ListViewText::insert_text ( guint  row,
const Glib::ustring column_one_value = Glib::ustring()
)

Insert a new row at an arbitrary position in the list.

Parameters:
row The row number
column_one_value the new text for the new row, column 0

void Gtk::ListViewText::prepend_text ( const Glib::ustring column_one_value = Glib::ustring()  )

Insert a new row at the beginning of the list.

Parameters:
column_one_value the new text for the new row, column 0

void Gtk::ListViewText::set_column_title ( guint  column,
const Glib::ustring title
)

Adds a title to column column.

Parameters:
column the column number.
title the title for column column.

void Gtk::ListViewText::set_text ( guint  row,
const Glib::ustring value
)

Change an existing value of a column 0 of a row of the list.

Parameters:
row the number of the row in the list.
value the new contents of column 0 of the row.

void Gtk::ListViewText::set_text ( guint  row,
guint  column,
const Glib::ustring value
)

Change an existing value of cell of the list.

Parameters:
row the number of the row in the list.
column the number of the column in the row.
value the new contents of that row and column.

guint Gtk::ListViewText::size (  )  const

Returns:
the number of rows in the listbox


Member Data Documentation

Glib::RefPtr<Gtk::ListStore> Gtk::ListViewText::m_model [protected]

TextModelColumns Gtk::ListViewText::m_model_columns [protected]


The documentation for this class was generated from the following file:
